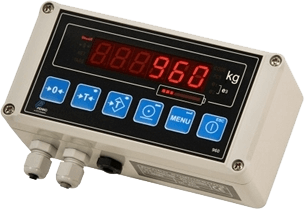

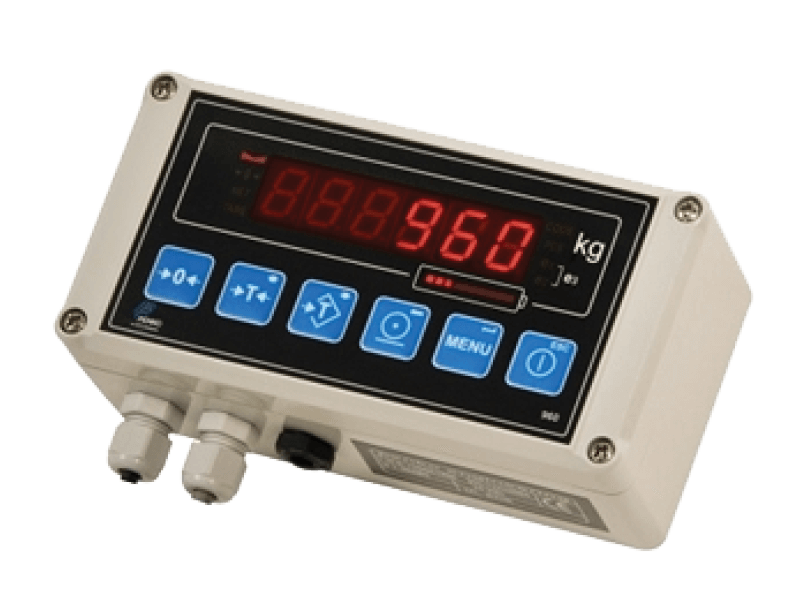

PENKO 960 indikator

PENKO 960 indikator - specifikationer:

  • Type Standaard
  • Wiring With sense
  • Type of sense Passive
  • Power supply 10,8 - 14,4 Vdc; 1 Watt
  • 21,6 - 28,8 Vdc; 1 Watt
  • Load cell power supply 5 Vdc
  • Sensitivity 0,8 μV/d
  • Sensitivity range -0,05 mV/V to +3 mV/V
  • Measuring range -0,25 mV to +15 mV
  • A/D Conversion speed 15/s
  • Max. load cell impendance 1100 Ω
  • Min. Load cell impendance 43,75 Ω
  • Max. no. of load cells 350 Ω 8
  • 1000 Ω 16
  • Max. number of d 10.000
  • Display resolution 100.000
  • Display steps 1,2,5,10,20,50,100,200
  • Display size 14mm; 7 segments LED
  • Inputs, 24 V (not free) 6
  • Outputs, 24 V 2, open drain
  • Printer on/off output Yes
  • Communication RS232 Yes
  • Auto power off 10 sec
  • Protection class IP65
  • Height 80mm
  • Width 160mm
  • Depth 58mm​

.
